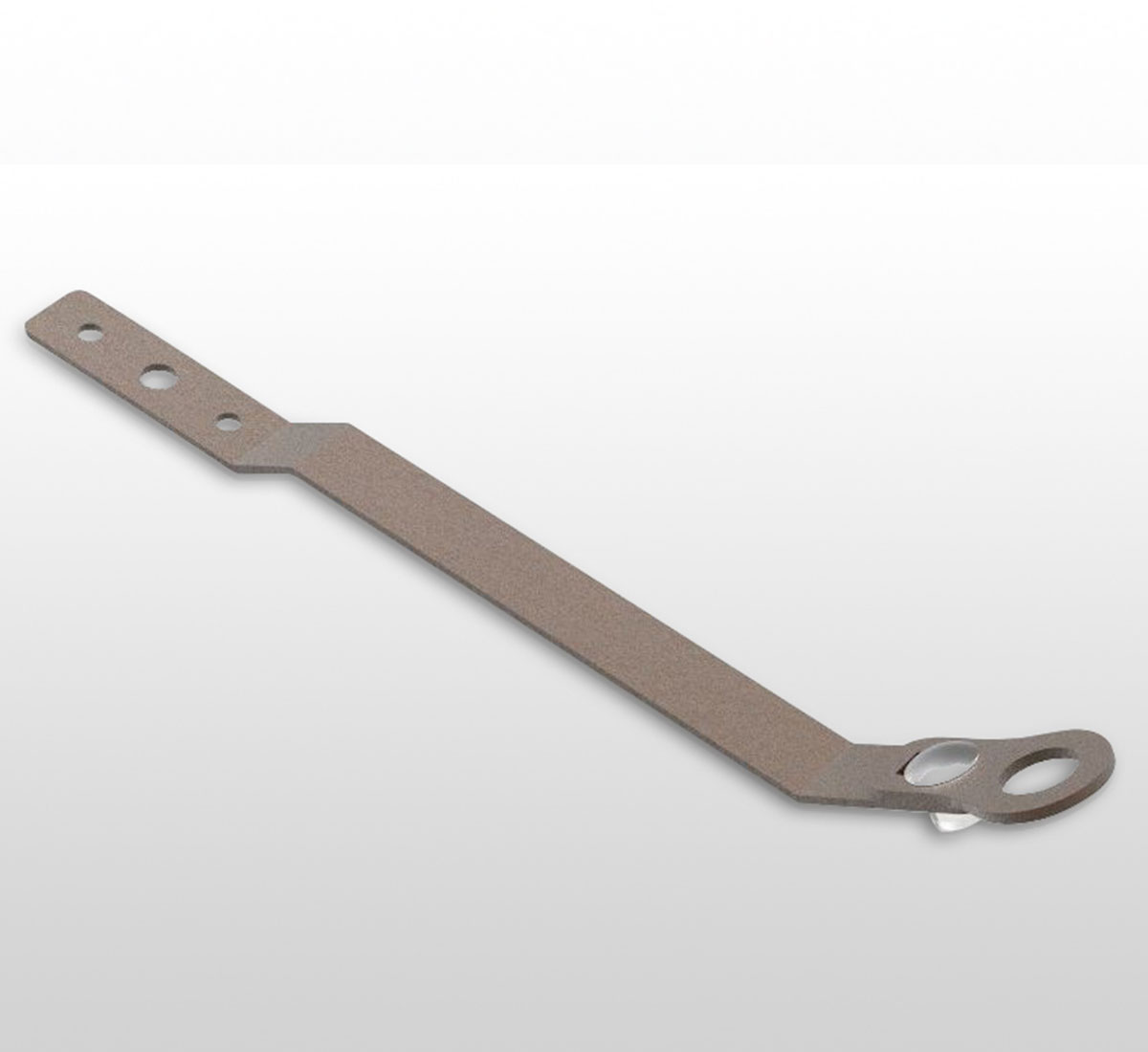

HB UNIV A undertile hook

Use:
Single anchor designed to be fastened directly to a supporting structure made of steel, wood or concrete. The various bends make it adjustable to any kind of roof covering. Can be used as auxiliary anchor for preventing pendulum effect or creating access paths.

Maximum number of users:
1

Material:
AISI 304 stainless steel – polished or burnished

Plate size:
base 30x100 mm, th. 3 mm, with two ø 9 holes and one ø 13 mm hole for fastening
Height of bend: 17.34mm – adjustable

Conformity:
Type A EN 795:2012
Type A UNI 11578:2015
